EBARA 입형다단펌프 EVMS

용도

• 주거, 상업, 산업 및 농업용 물 가압
• 유럽 표준 UNI EN 12845를 준수하는 소방 세트 제작
• 작물에 필요한 물 제공
• 산업용 세척 시스템
• 냉/난방 시스템의 물 순환
• 공정 어플리케이션에서의 산업용 액체 취급
• 수영장 또는 스포츠 시설의 물 재순환
• 냉동 탑에 필요한 물의 순환
• 물탱크 비우기 / 채우기

특징

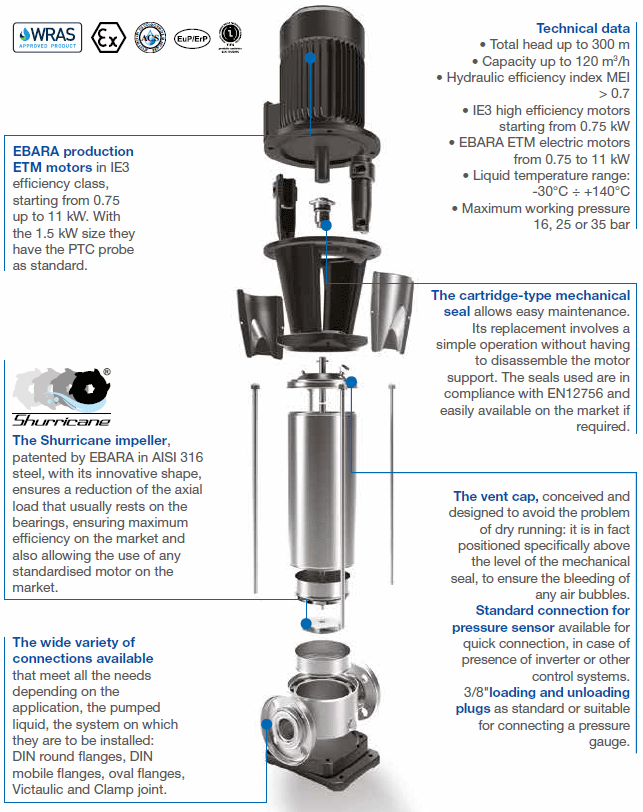

• High efficiency IE3 motor starig from 0.75 kW complied with the EuP 2005/32/EC and ErP 2009/125/EC directives.
• The VFD (Variable frequency drive) and the commercial sensorcan be directly mounted on Model EVMS to maintain physical constant operations such as pumping pressure depending on the conditionsof use.
• Various pipe connections are available depending on the application requirements Oval flange/Round flange/Loose flange.
• The external dimensions can be adjusted to the replacement of the existing pump in the wide majority.
• Easy maintenance
  – The cartridge mechanical seal enables the plug in replacement of the shaft seal without desassembling the motor bracket.
  – The spacer coupling allows easy maintenance without having to remove heavy motors over 5.5kW.
• Smart plug solutions
  Air ventilation plug/Water filling & sensor plug/Commercial sensor fitting/Measurements for suction and discharge pressure/drain.
